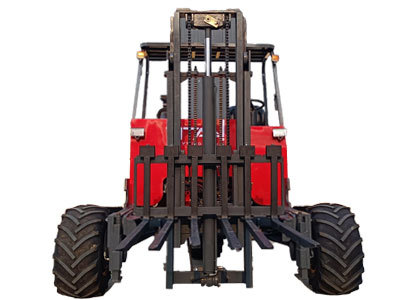

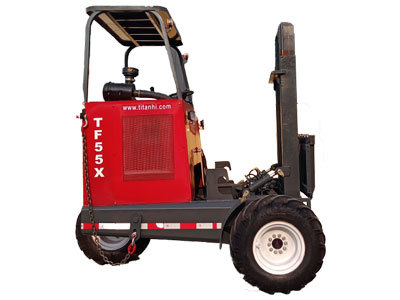

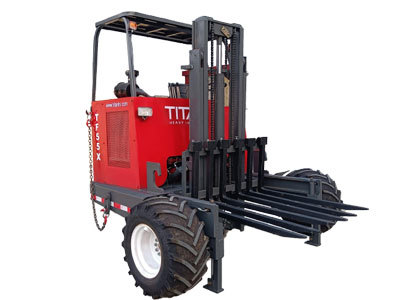

Piggyback Forklift
Still deciding? Get samples first, Contact US !
View similar products
- Description
-

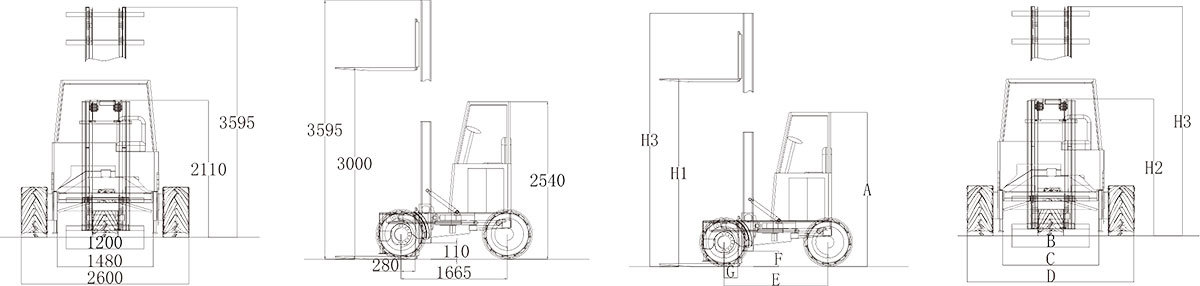

1 Rated Operating Weight 2.5T 2 Diesel Engine Power(hp) 55 3 Engine Emission Compliance China11 4 Maximum Engine RPM 2200 5 Driving Means 3wheel Drive ( or 2) 6 Driving System Hydrostatic System 7 TIRE TYPE 31 x 15.5 - 15 8 Tire Diameter 790mm 9 TIRE WIDTH 400mm 10 MAXIMUM SPEED 15km/h 11 Turning radius (in) 2000mm 12 Unladen Weight [optional] (Ibs) 3T 13 WORKING PRESSURE 18mpa 14 Mast Tilt [forward/backward] (0) 10/8 15 Side Shift Distance 120mm 16 Moving Distance Forward/Backward 680mm A Overall height 2540mm B Fork Frame Width 1200mm C Opening frame 1480mm D Overall Width 2600mm E WHEELBASE 1665mm H1 Lifting Height 3000mm H2 Mast Height 2110mm H3 Mast Height-RAISED 3595mm F Ground Clearance 110mm G Face Of Fork To Center Of Front Tire 100mm
Packaging for shipment
Customer Visits
Client Testimonials
Piggyback Forklift
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
