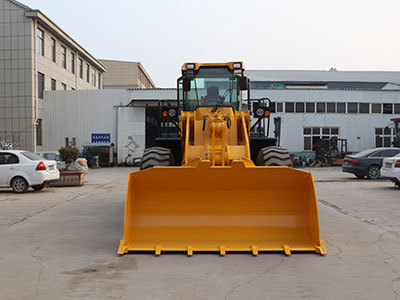

Construction Equipment TL50
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
TE135 Excavator
Standard Equipments for TL50
Powerful engine Hydraulic joystick Standard bucket USB/radio/Mirror/Fan/fire extinguisher/hand brake Automatic with torque Converter
Adjustable steel wheel/seat
Tires/gearbox Review Camera Additional Equipments for TL50
Standard quick hitch air conditoner Hydraulic joystick Floating function Specifications
Performance 1 Rated load 5000kg 2 Overall weight 16500kg 3 Rated bucket capacity 3m³ 4 Maximum traction force ≥168KN 5 Maximum breakout force ≥170KN 6 Maximum grade ability 30° 7 Maximum dump height 3142mm 8 Maximum dump reach 1250mm 9 Overall dimension (L×W×H) 8085×2963×3463mm 10 Minimum turning radius 6732mm Engine 11 Model Weichai 12 Type Inline,water cooling,dry
cylinder,direct injection13 No. of cylinder-bore/stroke 6-126×130mm 14 Rated power 162kw--2400r/min 15 Maximum torque 890N.m 16 Min fuel-consume ratio ≤215g/kw.h Transmission system 17 Torque converter YJ375 18 Gearbox mode Planetary power shift 19 Gear shift 4 forward shift 4 reverse shift 20 Maximum speed 39km/h Drive axles 21 Main transmission type Spiral gear,first stage decelerate 22 Final decelerate type First stage,planetary gear decelerate 23 Wheel base (mm) 3200mm 24 Wheel tread 2250mm 25 Minimum ground clearance 450mm Hydraulic system 26 System working pressure 18MPa 27 Boom lifting time ≤5.1s 28 Total time ≤9.3s 29 Fuel tank capacity 260L 30 Hydraulic tank capacity 300L 31 Function of leveling automatically Yes Brake system 32 Service brake Air over hydraulic disc brake on 4 wheels 33 Parking brake Manual parking brake Tyre 34 Type specification 23.5-25 35 Front tyre pressure 0.39±0.01 Mpa 36 Rear tyre pressure 0.33±0.01Mpa Steering system 37 Type Articulated load-sensing hydraulic steering system
38 Steering angle 38°each side Detailed Display
The whole system is equipped with a big brand engine with stable performance and strong power.
High performance, hydraulic circuit system
The structure of the working device is optimized to avoid local stress concentration and improve working efficiency.
Equipped with a built-in gauge for easy observation of hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Optional Accessories
Packaging for shipment
Customer Visits
Client Testimonials
Construction Equipment TL50
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
