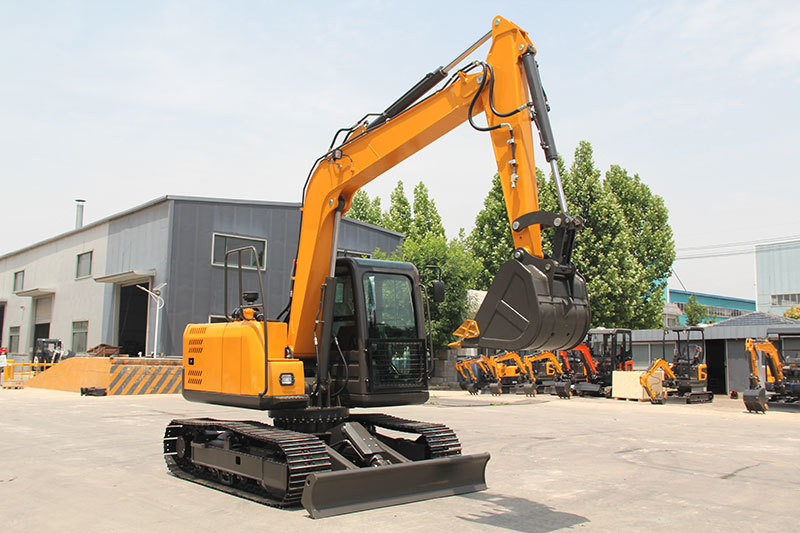

TE75 Excavator
Standard Configuration for TE75
Powerful engine Tracked rubber standard bucket Comfortable seat Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency Famous brand hydraulic system parts ensure the stable quality. Equipped with double fuel filter to guarantee fuel purity to protect engine Extend hydraulic line for various attachments. Comfort cabin, wide and open sight make operator easy to work. Korean pilot control joystick make your operation easy &joyful Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower. Technical Specification
Engine
Model Kubota V2607 42.4kW/2200rpm Type Eletronic injection, water cooled, supercharge No. of cylinder 4 Main Performance
Swing Speed r/min 0-11 Traveling Speed km/H 2.8 Grade ability % 70(35°) Bucket Digging Force kN 56 Arm Digging Force kN 38 Overall Dimensions

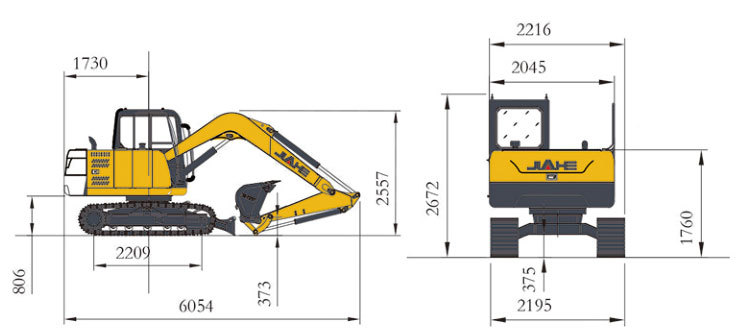

Overall Length mm 6054 Overall Width mm 2216 Overall Height mm 2672 Mini Ground clearance mm 375 Track width mm 450 Undercarriage width mm 2195 Undercarriage ground clearance mm 375

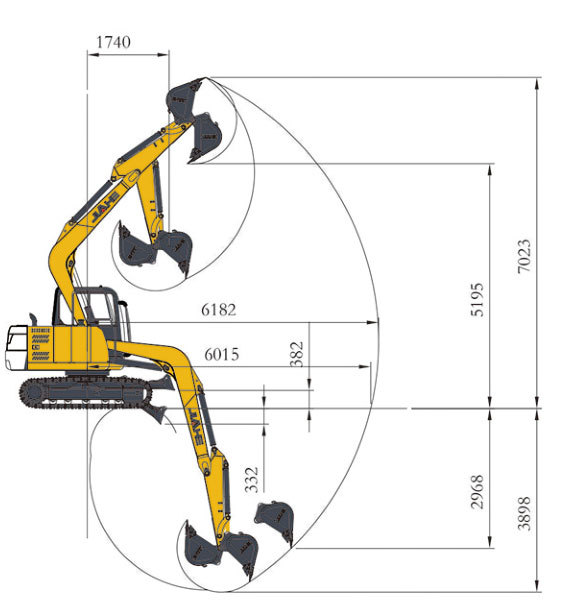

Operation parameters
Operation Weight KG 7500 Bucket Capacity m3 0.28 Max. Digging Radius mm 6182 Max. Digging Depth mm 3898 Max. Digging Height mm 7023 Max. Dumping Height mm 5195 Max. Dozer Cutting mm 332 Max. Dozer Lifting mm 385 Tail Swing Radius mm 1730 Front Min. Swing Radius mm 1720
Detailed Display

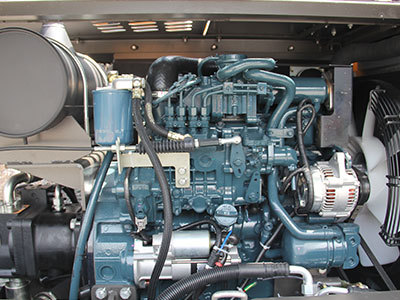

The whole system is equipped with a big brand engine with stable performance and strong power.

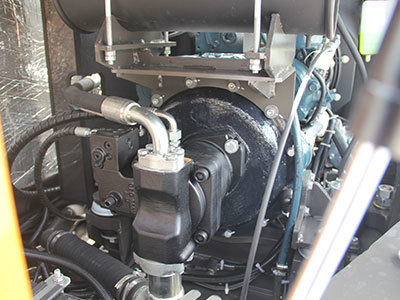

High performance, hydraulic circuit system

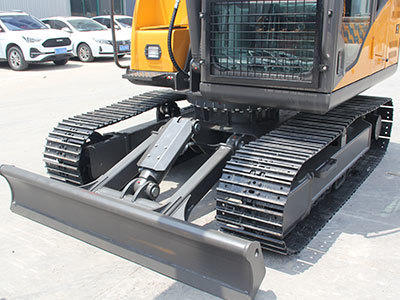

The structure of the working device is optimized to avoid local stress concentration and improve working efficiency.
Equipped with a built-in gauge for easy observation of hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Equipped with a built-in gauge for easy observation of hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Pneumatic parts, electrical parts and operating parts are made of advanced components of world-famous brands.

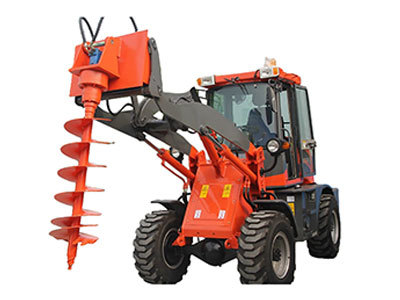

It has various functions such as digging, grappling, drilling, earthmoving, trenching and rock crushing.
The rear hood opens at a wide angle for easy maintenance and repair.

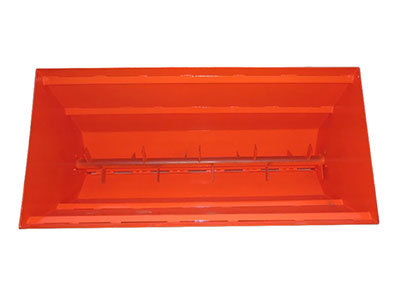

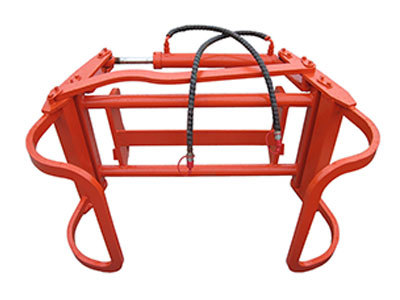

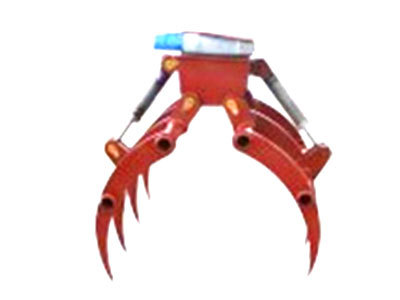

Optional Accessories
Packaging for shipment
Customer Visits
Client Testimonials
Construction Equipment TE75
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.

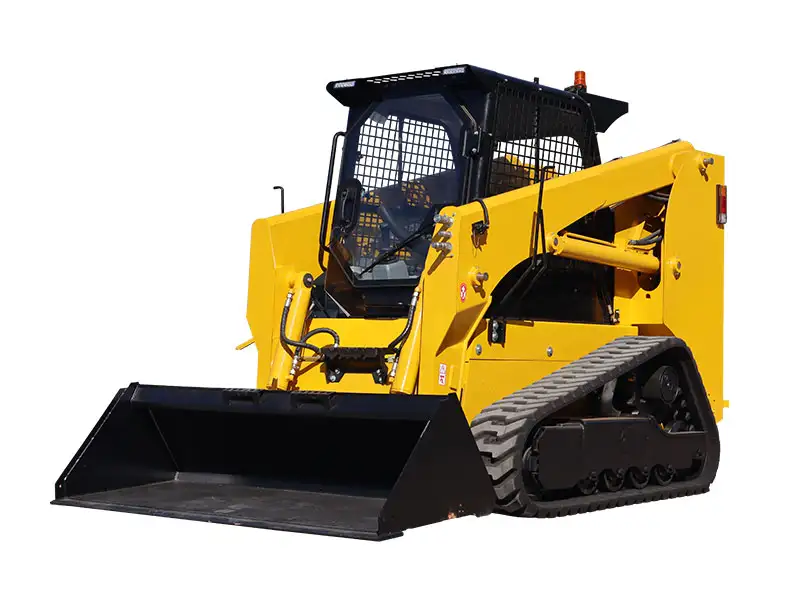

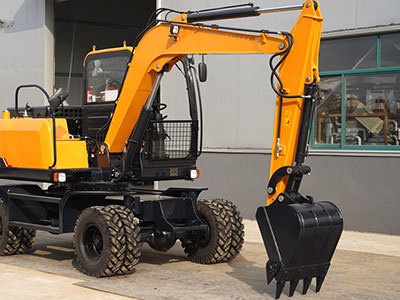

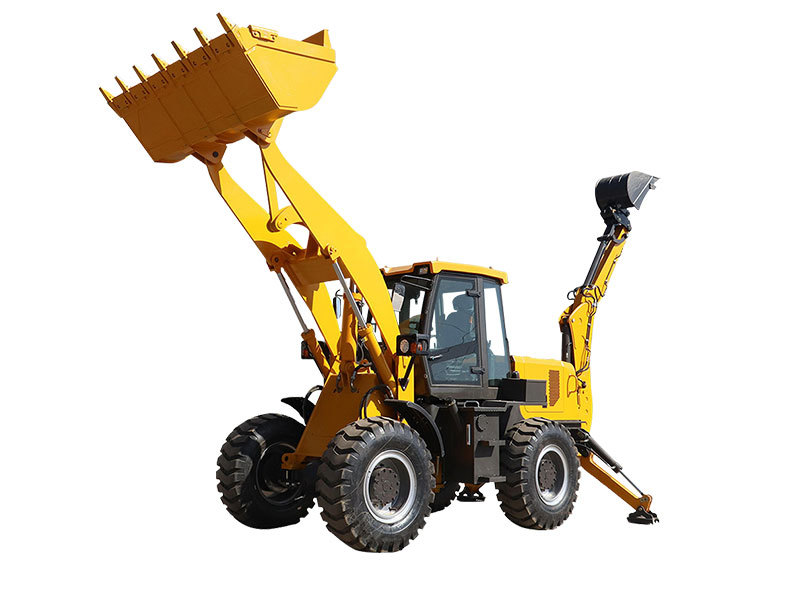

Related Product
