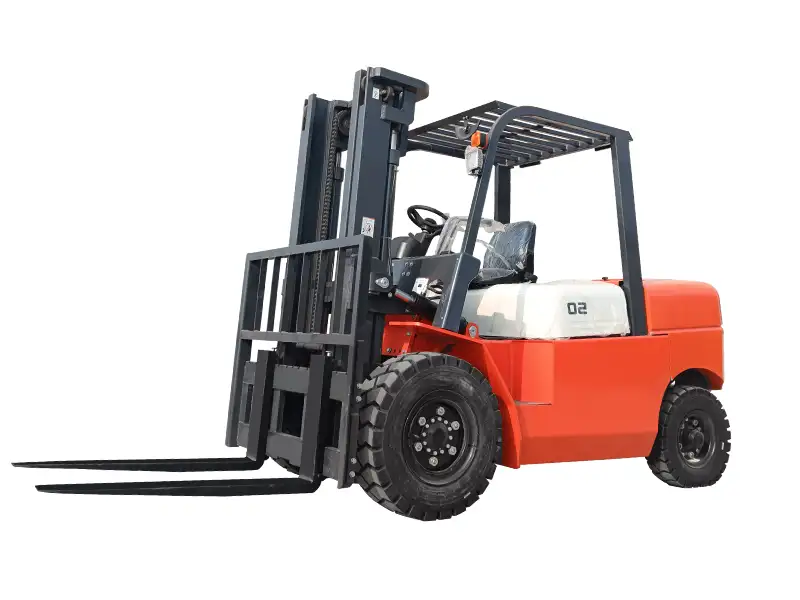

Materials Handling Equipment(MHE) TF35
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
Standard Equipments for TF35
Powerful engine machanical joystick Two forks Comfortable seat LED high quality lamp group Adjustable steel wheel/seat Solid tyre 2 sections and 3m lifting height Specifications
Model TF35 Rated load 3500kg Load center distance 500mm Fork lift maximum height (with back rack) 4135mm maximum lift height 3000mm The full height of the gantry (the fork is on the ground, the gantry is vertical) 2060mm Free lift height 100mm Shelf height (from the fork surface of the gantry) 1090mm Distance from seat surface to overhead guard 976mm Full height (overhead guard) 2118mm Full length (without fork) 2654mm front overhang 475mm rear overhang 425mm wheelbase 1700mm draw pin height 410mm Minimum ground clearance (at the gantry) 145mm full width 1268mm Outer fork distance (max/min) 1100/240mm Wheel base (front/rear) 1057/990mm Outside the minimum turning radius 2422mm Inside the minimum turning radius 1648mm Minimum right angle radius width 2522mm Gantry inclination (front/rear) Front gear 6 rear gear 12 Fork size 1070*45*120mm Maximum travel speed (full load / no load) 12.5/14km/h Speed boost (full load/no load) 270/420mm/s Speed drop (full load/no load) 550/450 mm/s Maximum traction (full load / no load) 19KN Maximum gradeability (full load/no load) 15/20% gross weight 4790kg Weight distribution full load (front/rear) 7250/1100kg Weight distribution empty (front/rear) 1890/2860kg Number of wheels X/drive wheel 2X/2 Tyre type (front/rear) solid tire front tire 23*9-10 rear tire 18*7-8 service brake hydraulic brake parking brake mechanical Battery (voltage/capacity) 76.8/206-412 Travel motor model HPQ16.6-80 Oil pump motor model HPB16-80XG controller INMOTION engine model Xinchai
Packaging for shipment
Customer Visits
Client Testimonials
Materials Handling Equipment(MHE) TF35
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
