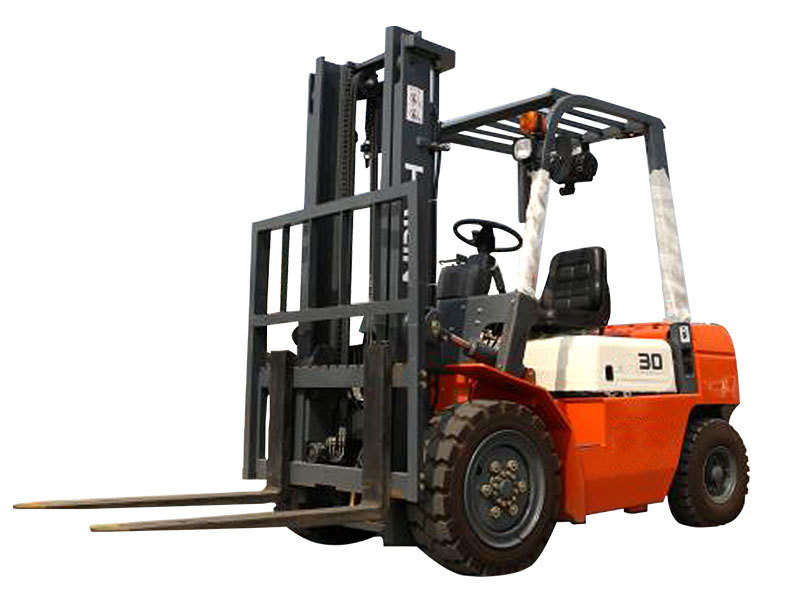

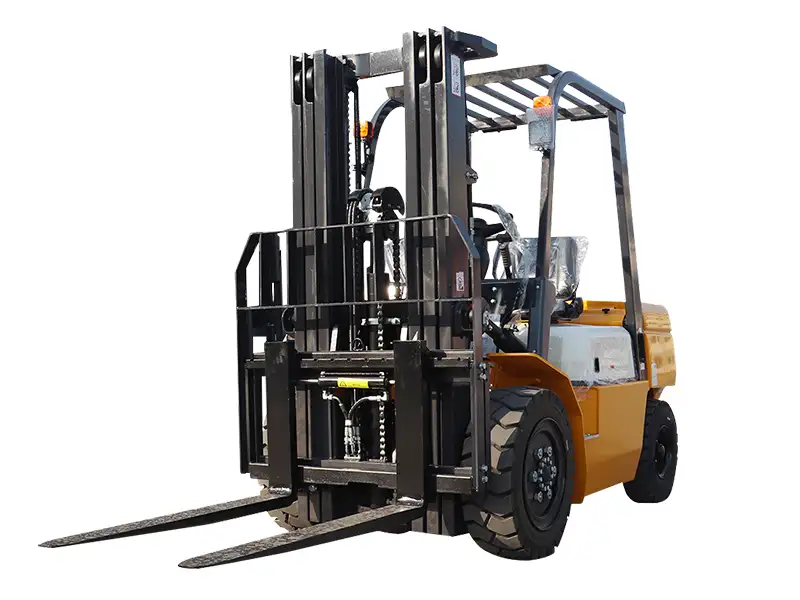

Materials Handling Equipment(MHE) TF50
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
Standard Equipments
● Powerful Engine

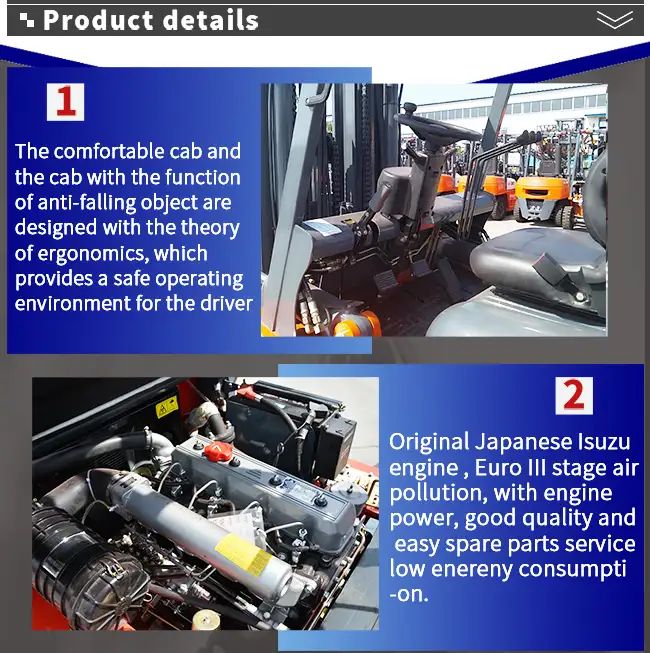

● Comfortable cab

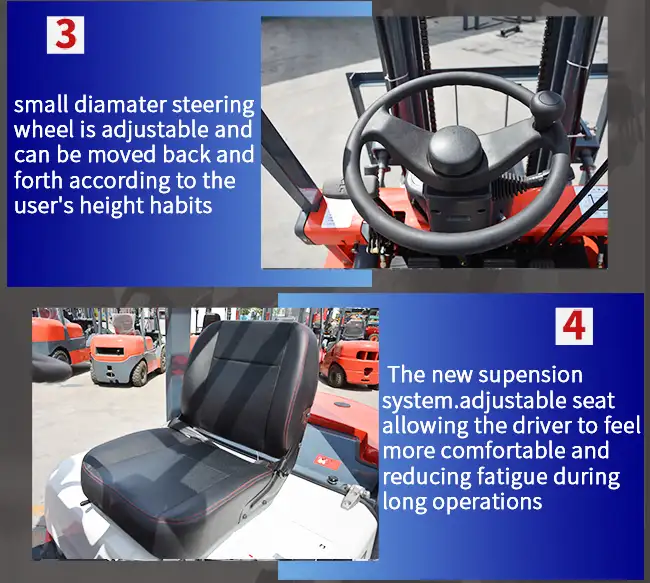

● Adjustable Steering Wheel
● Adjustable seat

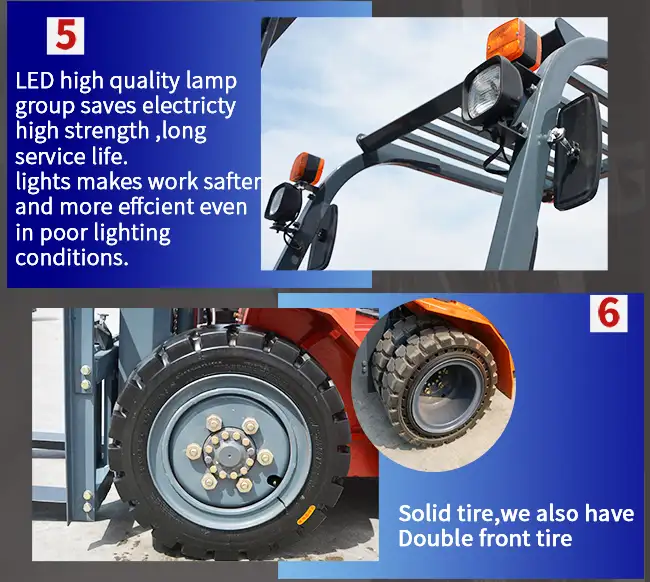

● LED high quality lamp group
● Solid tyre

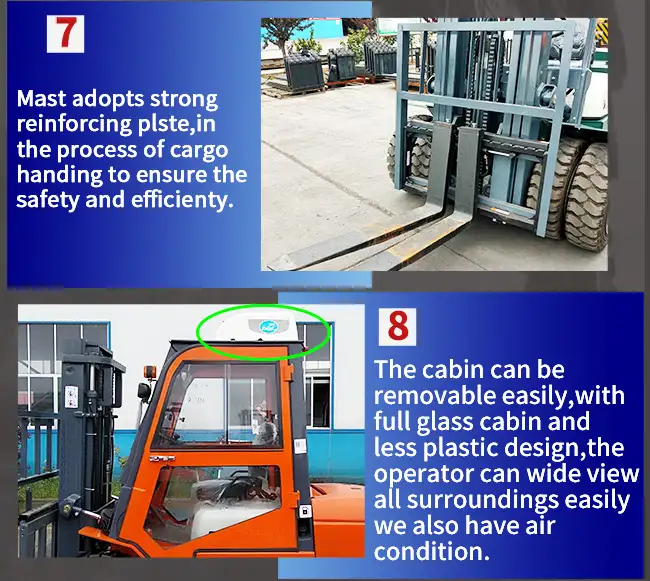

● Standard mast
Countries we are dealing with
√ Sweden
√ Russia √ Austrlia&NZ √ German √ Switzerland √ Bulgaria √ Denmark √ Estonia √ Latvia Russia √ Ukraine √ Poland √ Czech Republic Technical Parameters
Characteristics Fuel type Diesel Load capacity kg 5000 Load center mm 600 Lift height mm 3000 Full free lift height mm 135 Fork dimension mm 1220×150×55 Mast tilting angle Front/Rear Deg. 6/12 Min. turning radius mm 3050 Min. width of right angle
stacking channelmm 4740 Min. width of right
angle channelmm 2800 Groud clearance mm 160 Overhead guard height mm 2350 Front overhang mm 560 Performance Max. travel speed Full load km/h 19 Max. lift speed Full load mm/s 400 Max. traction power Full load KN 22 Max. gradeability % 20 Dimensions Total length With fork mm 4530 Total length Without fork mm 3310 Total width mm 1480 Mast extended height mm 4270 Mast lowered height mm 2240 Chassis Tyres Front 300-15-18PR Rear 7.00-12-12PR Wheelbase mm 2200 Tread Front/Rear mm 1180/1190 Service weight Kg 6000 Drive Battery V/Ah （12/80)x2 Motor Model XINCHAI 498 Rated power: KW 60KW Transmission Hydraulic Operating pressure Mpa 20
Packaging for shipment
Customer Visits
Client Testimonials
Materials Handling Equipment(MHE) TF50
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
