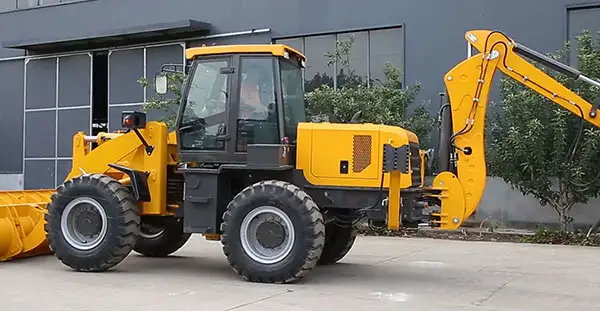

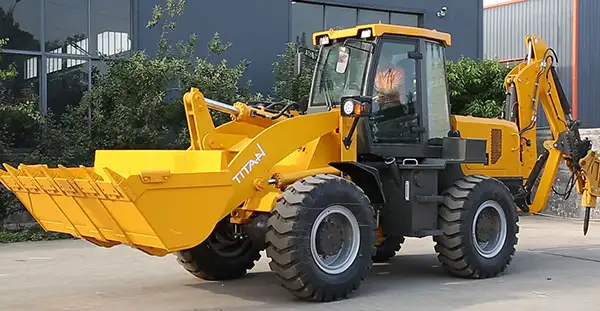

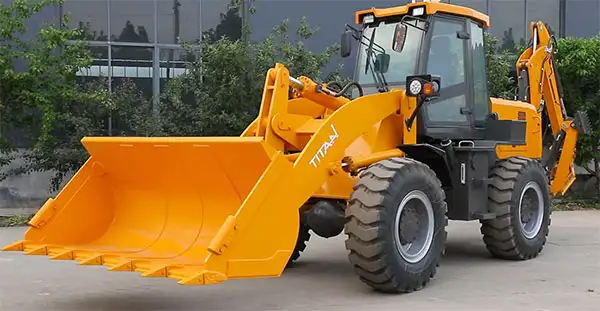

Construction Equipment TL45-35
Still deciding? Get samples first, Contact US !
View similar products
- Description
-

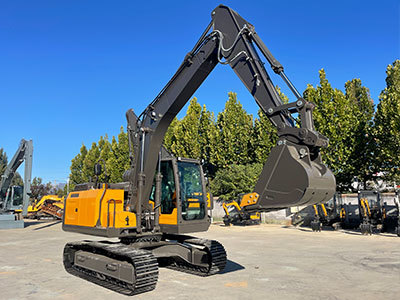

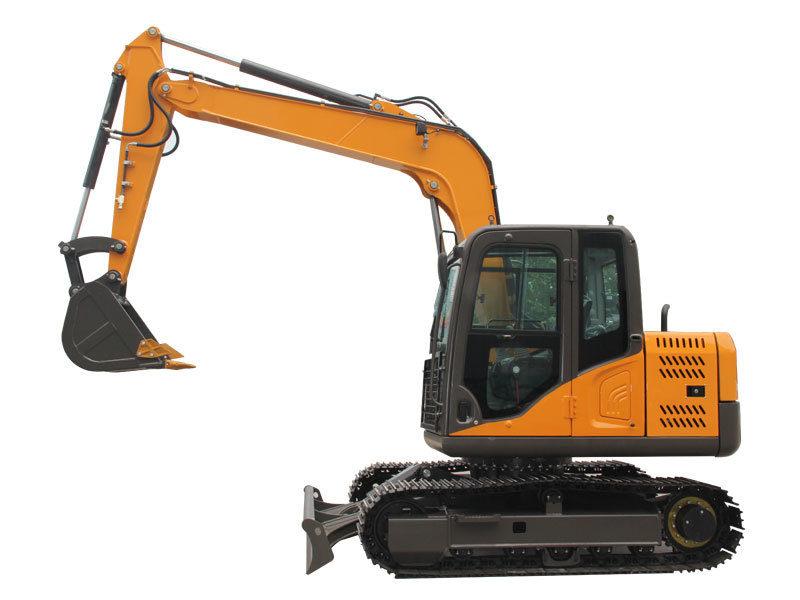

TE135 Excavator
Standard Equipments for TL45-35

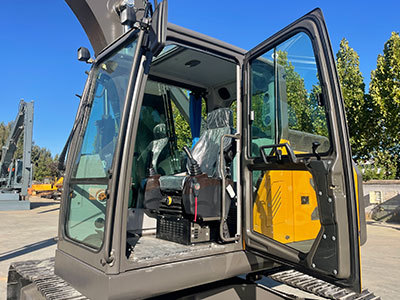

Powerful engine Hydraulic joystick Front bucket USB/radio/Mirror/Fan/fire extinguisher/hand brake Backhoe bucket Adjustable steel wheel/seat Tires/gearbox LED light(Warning light, high beam, low beam, dome light) Rear camera/rear camera display Additional Equipments for TL45-35
Cummins Engine Deutz engines Engine Preheater quick hitch for front bucket (solenoid valve and pipeline) Heating and cooling air conditioner quick hitch for back bucket (solenoid valve and pipeline) Extended arm for Rear excavation end Telescopic boom for Rear excavation end LCD display for cabin inside oil filter Attachments
4 in 1 bucket for front Hammer for back 6 in 1 bucket for front Auger (1.5m long, 30cm diameter) for back A-type wooden fork for front Grab the wooden fork for back Grass fork for front Digging bucket 300/400/600mm Snow blade for front Digging bucket 800/900/1200mm Bulldozer for front Pallet fork for front Specifications
Performonce 1 rated loading 3500kg 2 overall weight 9900kg 3 bucket capacity 1.8m3 4 maximum traction force 95KN 5 maximum breakout force 127KN 6 maximum grade ability 30℃ 7 maximum dump height 3400mm 8 maximum dump reach 1006mm 9 overall dimension (L×W×H) 6890*2430*3070mm 10 minimum turning radius 5097mm Engine 11 model Deutz enginesWP6G125E22 12 type Vertical, in-line, water cooled, 4-stroke diesel engine
13 NO. of cylinder-bore*stroke 6-108*125 14 rated power 135HP—2200r/min 15 maximum torque 500N.m 16 min. fuel-consume ratio ≦210Kw/h Transmission system 17 torque converter YJ315-X 18 gearbox mode Power shaft normally engaged straight gear 19 gears 4 forward 2 reverse 20 maximum speed 40km/h Drive 21 main reducing spiral bevel gear grade 1reduction 22 Decelerating model Planetary reduction grade 1 23 Wheel base 2600mm 24 Ground clearance 400mm 25 Wheel tread 1800mm Hydraulic system 26 System working pressure 16.5MPa 27 Boom lifting time 4.83S 28 Total time 9.15±0.5s Braking System 29 service brake Air-cap oil caliper disc four-wheel brake 30 Parking brake Manual clamp disc type Tyre 31 Tire specifications 17.5-25 32 Front wheel air pressure 0.4MPa 33 Rear wheel air pressure 0.35Mpa Excavation part 34 Digging bucket capacity 0.16-0.19cbm 35 Maximum digging depth 3200mm 36 Maximum digging height 4100mm 37 Boom rotation angle 170° 38 rising power 28.4kn 39 Bucket digging force 32.4kn 40 Digging force of stick 22.9kn Detailed Display
The whole system is equipped with a big brand engine with stable performance and strong power.
High performance, hydraulic circuit system

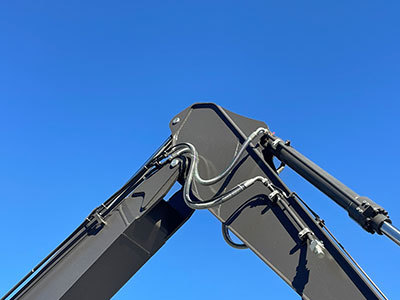

The structure of the working device is optimized to avoid local stress concentration and improve working efficiency.
Equipped with a built-in gauge for easy observation of hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Equipped with a built-in gauge for easy observation of hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Pneumatic parts, electrical parts and operating parts are made of advanced components of world-famous brands.
It has various functions such as digging, grappling, drilling, earthmoving, trenching and rock crushing.
The rear hood opens at a wide angle for easy maintenance and repair.
Optional Accessories
Packaging for shipment
Customer Visits
Client Testimonials
Construction Equipment TL45-35
Still deciding? Get samples first, Contact US !
Products Category
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
