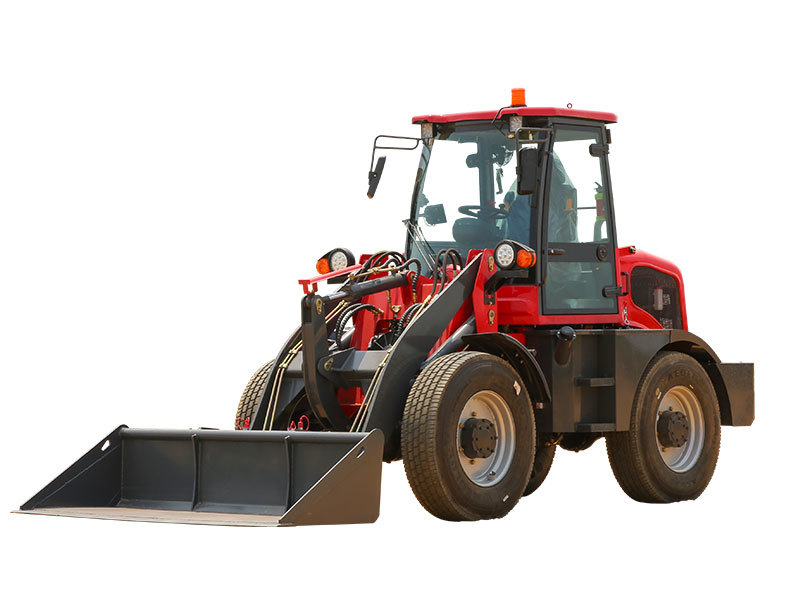

Loader Series TL20
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Description
-
Standard Configuration for TL20
Powerful engine machanical joystick standard bucket USB/radio/Mirror/Fan/fire extinguisher/hand brake Automatic with torque Converter Adjustable steel wheel/seat Tires/gearbox Review Camera Specifications
Performance
1 Rated loading 2000kg 2 Overall weight 5200kg 3 Bucket capacity 1.2m3 4 Maximum traction force 100KN 5 Maximum breakout force 56KN 6 Maximum grade ability 28℃ 7 Maximum dump height 3600mm 8 Maximum dump reach 900mm 9 Overall dimension (L×W×H) 6050*2000*2850mm Engine
10 Model Cummins 55KW 11 Type Lnline water cooling dry cylinder injection 13 Rated power 55kw-2400r/min 14 Maximum torque 147N.M 15 Emission standards National second class Transmission system
16 Torque converter Single-stage, four-element, twin-turbine torque converter 17 Gearbox mode Planetary Power Transmission 18 Gears 2 Forward shift 2reverse shift 19 Maximum speed 25km/h Drive axles
20 Main reducing spiral Bevel gear grade 1reduction 21 Decelerating mode Planetary reduction grade 1 22 Wheel base (mm) 2300mm 23 Wheel tread 1560mm Hydraulic system
24 System working pressure 16MPa 25 Boom lifting time 8.9s 26 Total time 10±0.2s Brake system
27 Service brake Four-wheel brake with oil cap and disc 28 Parking brake Manual disc type Tyre
29 Type specification 1670-20 30 Front tyre pressure 0.4Mpa 31 Rear tyre pressure 0.35Mpa
Packaging for shipment
Customer Visits
Client Testimonials
Loader Series TL20
Still deciding? Get samples first, Contact US !
Products Category
Tag list
Qualification
FAQs
Where is your factory?
The factory of Weihai Titan Heavy Machinery Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long history dity with beautifulscenery and rich culture.
There are our office addresses also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NewArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What certificates do you have?
QUALITY MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015
CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a factory or a trading company?
We are an integrated production and sales company,and both our production and sales teams have over 21 years of experience.
What is the MOQ of the product and what is the production lead time after ordering?
MOQ is 1,and the production lead time depends on the quantity of products ordered and is usualy around 15-30 days.
What are the payment options?
T/T payment is preferred,other payment methods are also accepted,payment terms:30% advance payment,70% balance payment.
