- Description
-
Standard Equipments for TL30-25T
Powerful engine Hydraulic joystick Front bucket USB/radio/Mirror/Fan/fire extinguisher/hand brake Backhoe bucket Adjustable steel wheel/seat Tires/gearbox LED light(Warning light, high beam, low beam, dome light) Rear camera/rear camera display Specifications

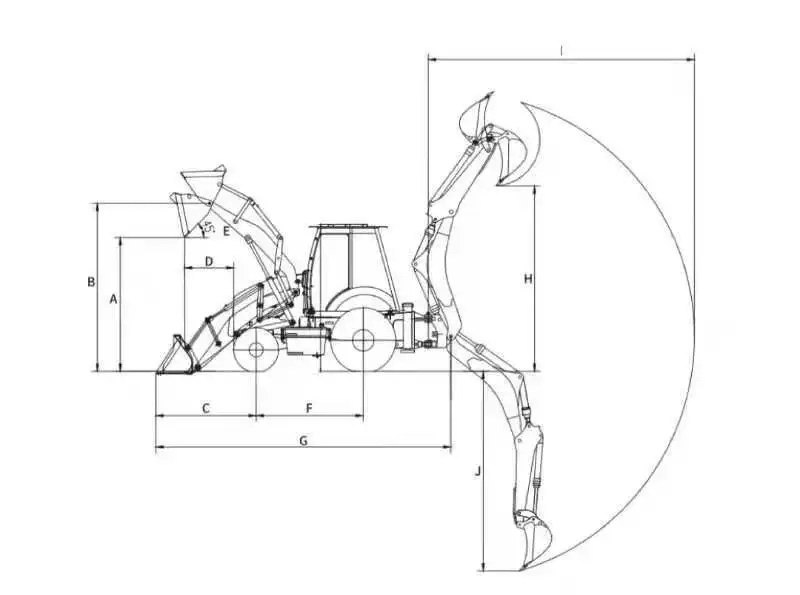

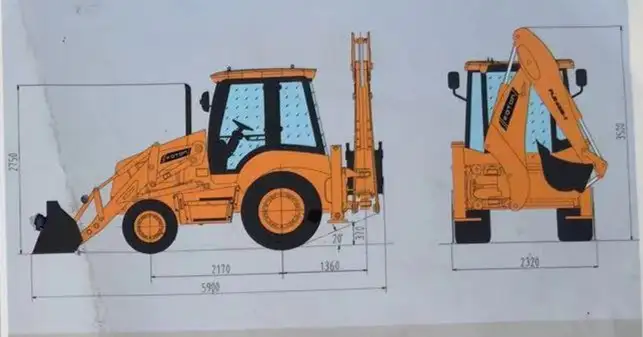

Overall Operating Weight 8200KG Final Reducer Single Stage Final Reducer Transport Dimension Rated Loader of Axle 8/18.5t L*W*H 6120×2410×3763 cab to ground mm 2900mm Transmission System Wheel base 2248mm Torque Converter Min. Ground Clearance 300mm Model YJ280 Bucket Capacity 1.0m3 Type Single-stage Three Elements Breakout Force 38KN Max. Efficiency 84.40% Loading Lifting Capacity 2500KG Gearbox Bucket Dumping Height 2700mm Type Fixed Shaft Power Transmission Bucket Dumping Distance 925mm Oil Pressure of Clutch 1373Kpa—1569 Kpa Digging Depth 52mm Gears Two Gears Ahead, Two Gears Astern Backhoe Capacity 0.3 m3 Max.Speed 28Km/h Max. Digging Depth 4082mm/4500mm/ Tyre 5300mm Swing Angle of Excavator Grab 190o Model 14-17.5/19.5L-24 Max. Pulling Force 39KN Pressure of Front wheel 0.55Mpa Engine Pressure of Back Wheel 0.223Mpa Model Yuchai Brake System Type In Line Direct injection Four-Stroke and Injection Combustion Chamber Emergency Brake Operation Power Implementing brake Cylinder-Inside Diameter*Stroke 4-108×132 Manual Operation Power Terminating Brake Rated Power 75KW Service Brake Air Over Oil Caliper Brake Rated Speed 2200r/min External Type Min. Fuel Consumption ≤230g/km.h Self-regulation Max.Torque ≥400N.M Self-balance Displacement 4.837L Hydraulic System Steering System Digging Power of Excavator Grab 46.5KN Model of Steering Device BZZ5-250 Digging Power of Dipper 44KN Steering Angle ±36 o Bucket Lifting Time 6．8S Min. turning radius 6581mm Bucket Lowering Time 3.1S Pressure of the system 18Mpa Bucket Discharge Time 2.0S Axle Main Transmission Type Double Reduction Main feature
● The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking.
● Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
● Mining, loading function all lead control, light and flexible, high operating efficiency.
● Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
● Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
● The design of the front flip cover greatly improves the maintenance of the entire machine.
● A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations.
