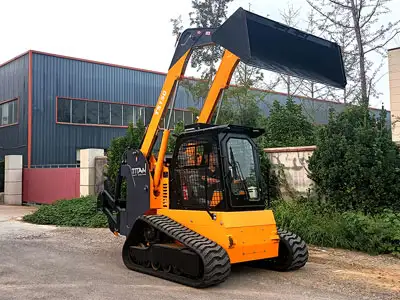

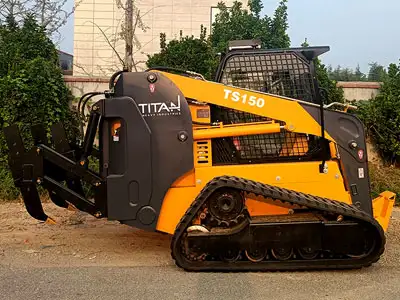

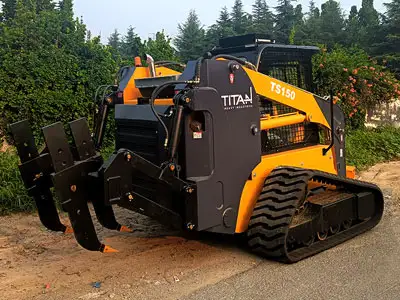

TS150 Excavator
Specifications
TS150 Operating load (kg) 1200 Max Speed（km/h） 9/18 Tire（track） model 320X86 Rated power (Kw) 55 self weight bucket (kg) 4500 Fuel tank capacity(L) 90 Bucket capacity (m3) 0.55 Overall operating height (mm) 4070 height to top of cab (mm) 2160 Overall length without bucket（mm） 3000 overall length with bucket(mm) 3700 Dumping height(mm) 2500 Dumping reach(mm) 700 Wheelbase(mm) 1500 Ground clearance(mm) 200 Tread width(mm) 1654 Width (mm) 1994 Bucket width (mm) 2030 Rated flux (L/min) 88 High Flow Flux(L/min) 140 Height to bucket hinge pin (mm) 3280 Height to bottom of level bucket mm 3140 Dumping angle at maximum height 40 Rollback o bucket on ground 30 Rollback of bucket at full height 104 Angle of departure 20 Front tuning radius(mm) 2200 Rear tuning radius(mm) 1742 Rear axle to bumper(mm) 938
